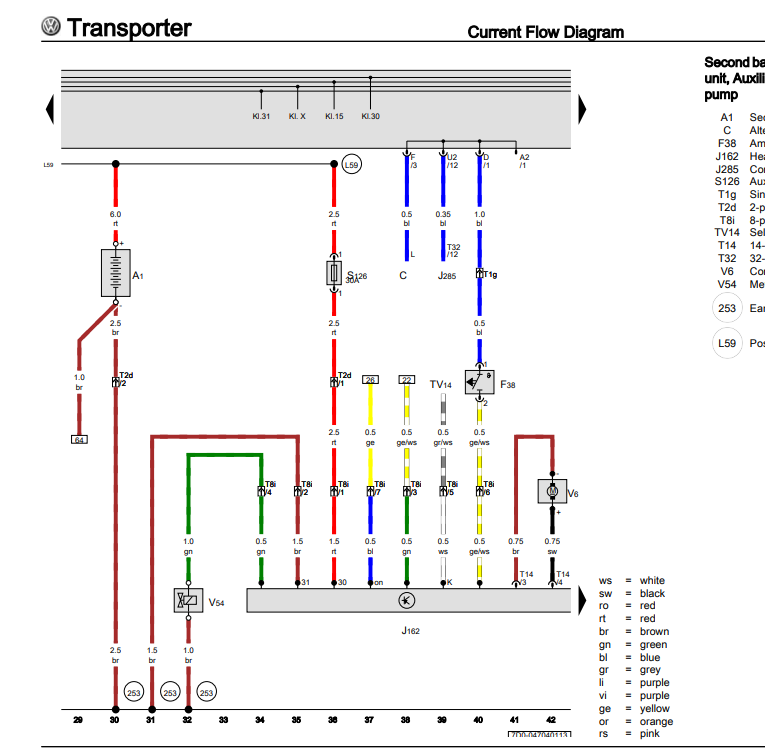

VW Transporter T4 - Current Flow Diagram. Wiring diagrams

Volkswagen Transporter from 1998

Полные электросхемы для Фольксваген Транспортер Т4 с 1998 года выпуска.

2.8 L/103 kW Motronic, engine codes AES from August 1998
2.5 L/85 kW Simos, engine codes AET from August 1998
2.5 L/85 kW Simos, engine codes AEU from August 1998
2.0 L/62 kW Digifant, engine codes AAC from August 1998
2.5 L/75 kW direct injection turbo diesel, engine code ACV from May 1998
2.5 L/65 kW direct injection turbo diesel, engine code AJT from May 1998
2.5 L/111 kW direct injection turbo diesel, engine code AHY from August 1998
2.4 L/55 kW Naturally aspirated diesel, engine codes AJA from August 1998
2.4 L/57 kW Naturally aspirated diesel, engine codes AAB from August 1998
1.9 L/50 kW Cat diesel, engine codes ABL from August 1998
2.5 L/65 kW direct injection turbo diesel, engine code AJT from May 1999
2.5 L/75 kW direct injection turbo diesel, engine codes ACV, AUF
2.5 L/111 kW direct injection turbo diesel, engine code AHY from May 1999
2.5 L/111 kW direct injection turbo diesel, engine code AXG from September 2000
2.5 L/75 kW direct injection turbo diesel, engine codes AXL, AYC from May 2001
2.5 L/65 kW direct injection turbo diesel, engine code AYY (dropside only) from October 2001
2.5 L/75 kW direct injection turbo diesel, engine codes AXL, from May 2001
2.5 L/65 kW direct injection turbo diesel, engine code AYY (dropside only), from October 2001
2.5 L/85 kW Simos, engine codes APL, AVT from May 1999
2.5 L/85 kW Simos, engine codes AVT, from May 1999
2.8 L/150 kW Motronic, engine codes AMV, AXK from May 2000
2.8 L/150 kW Motronic, engine codes AMV, from May 2000

597 pages. Edition 03.2013
